Supplementary text for GBE ms GBE-210319

workflowr

• Summary
• Checks
• Past versions

Last updated: 2021-06-25

Checks: 7 0

Knit directory: delta-sift-polydfe/

This reproducible R Markdown analysis was created with workflowr (version 1.6.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.

---

R Markdown file: up-to-date

Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

Environment: empty

Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

Seed: set.seed(20210313)

The command set.seed(20210313) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

Session information: recorded

Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

Cache: none

Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.

File paths: relative

Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.

Repository version: cfaa886

Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.

The results in this page were generated with repository version cfaa886. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.

Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:

Ignored files:
    Ignored:    .Rhistory
    Ignored:    .Rproj.user/
    Ignored:    analysis/.Rhistory

Untracked files:
    Untracked:  FigsMay2021/
    Untracked:  eps_vs_delta.pdf
    Untracked:  eps_vs_lognsyn_counts.pdf
    Untracked:  flux_benef_vsdelta.pdf
    Untracked:  overview_dfe_bins_ByDelta.pdf
    Untracked:  pb_versus_delta.pdf

Unstaged changes:
    Deleted:    analysis/S1_Stat_models_deltaDIFT_DFEs.Rmd
    Deleted:    data/summary_polyDFE_siftCate_new.txt

Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

---

These are the previous versions of the repository in which changes were made to the R Markdown (analysis/S1_Stat_models_deltaSIFT_DFEs.Rmd) and HTML (docs/S1_Stat_models_deltaSIFT_DFEs.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.

File	Version	Author	Date	Message
html	274a532	tbata	2021-06-25	Publish the final files of latest revisions
Rmd	65aa773	tbata	2021-06-25	Publish the final files of latest revisions
html	593f3c8	Thomas Bataillon	2021-03-20	Build site.
html	52a94dd	Thomas Bataillon	2021-03-20	Build site.
Rmd	3fe9d78	Thomas Bataillon	2021-03-20	Publish the initial files + S1 & S2 + readme for myproject
html	040ba4c	Thomas Bataillon	2021-03-13	Build site.
html	afad139	Thomas Bataillon	2021-03-13	Build site.
html	343029d	Thomas Bataillon	2021-03-13	Build site.
html	706a03c	Thomas Bataillon	2021-03-13	Build site.
Rmd	66965e5	Thomas Bataillon	2021-03-13	Publish the initial files for myproject

---

brief overview of analysis and updates :

• We read in the data made available in the lastest version of the poyDFE outputs summary by Jun Chen.

• We define a covariate \(\delta\) as the change in discretized SIFT scores

• Rationale for conditioning DFE on \(\delta\) is to illustrate that change in SIFT scores are a powerful way to capture the expected effect of mutations and the fact that DFEs are quite different. There is a sharp divide between \(\delta \leq 0\) and \(\delta >0\)

• we explore the amount of variation explained by \(\delta\) for

  • pin/piS

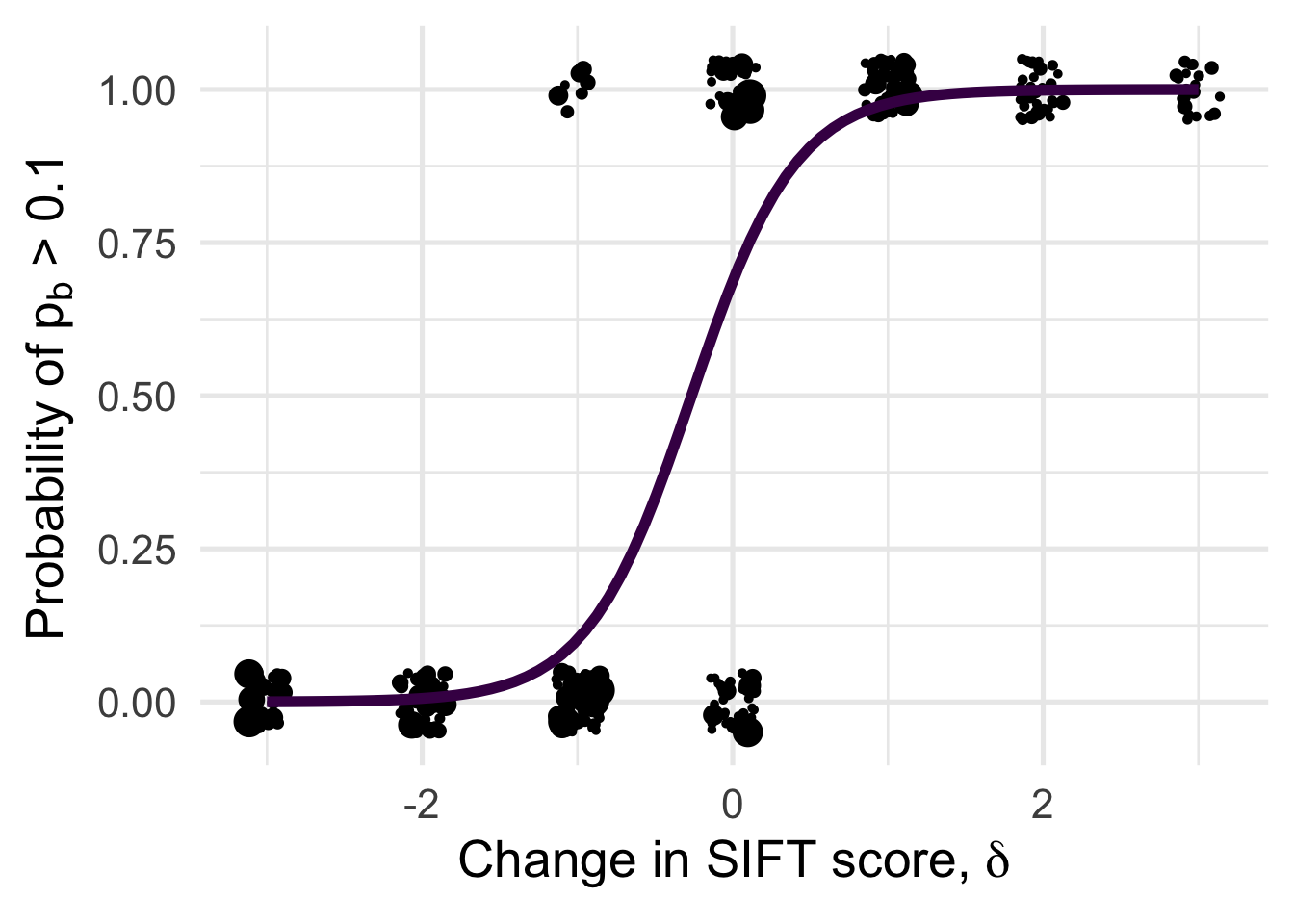

  • other DFE property: probability of sizable amount of beneficial mutations ( eg \(Prob[ p_b >0.1 ]\))

Reading the data

dfe_sift <- read.table("data/summary_table_v3.txt",header=T)
dim(dfe_sift)

[1] 322  28

names(dfe_sift)

 [1] "species"     "group"       "category"    "fold"        "from"
 [6] "to"          "delta"       "PiS"         "PiN"         "PiNPiS"
[11] "syn_counts"  "nsyn_counts" "Lsyn"        "Lnsyn"       "TD4"
[16] "TD0"         "GC3"         "gradient"    "eps"         "Sd"
[21] "beta"        "pb"          "Sb"          "alpha"       "D1"
[26] "D2"          "D3"          "D4"

dfe_sift$delta <- dfe_sift$to - dfe_sift$from
head( dfe_sift) %>% kable(digits = 2)

species	group	category	fold	from	to	delta	PiS	PiN	PiNPiS	syn_counts	nsyn_counts	Lsyn	Lnsyn	TD4	TD0	GC3	gradient	eps	Sd	beta	pb	Sb	alpha	D1	D2	D3	D4
Qa	tree	0:DEL-DEL	0	-2	-2	0	0.01	0.01	0.51	13643	1468	251324	54855	-0.70	-0.58	0.46	0	0.00	-1117.94	0.65	0.38	2.74	0.99	0.01	0.02	0.11	0.48
Qa	tree	0:DEL-EXDEL	0	-2	-3	-1	0.01	0.00	0.18	12147	1331	217252	116333	-0.72	-1.18	0.46	0	0.00	-3290.26	0.24	0.00	0.15	0.00	0.16	0.12	0.20	0.52
Qa	tree	0:DEL-STABLE	0	-2	0	2	0.01	0.05	4.31	33381	4811	649224	28635	-0.69	0.44	0.46	0	0.00	0.00	0.01	0.99	50.00	1.00	0.01	0.00	0.00	0.00
Qa	tree	0:DEL-TOL	0	-2	-1	1	0.01	0.02	1.47	16856	1878	308853	28779	-0.67	0.13	0.46	0	0.02	-4909.01	4.56	0.79	49.99	1.00	0.00	0.00	0.00	0.21
Qa	tree	0:EXDEL-DEL	0	-3	-2	1	0.01	0.06	5.57	1075	131	25633	760	-0.48	0.83	0.46	0	0.00	-2309.41	4.74	0.99	49.97	1.00	0.00	0.00	0.00	0.01
Qa	tree	0:EXDEL-EXDEL	0	-3	-3	0	0.02	0.00	0.09	333	31	4890	4596	-0.50	-0.65	0.47	0	0.03	-4916.59	0.59	0.05	9.37	0.99	0.01	0.02	0.08	0.84

Filtering data :

Removing obs with too high \(\epsilon_{anc}\)

I n what follows I use the subset obtained with the condition filter(cat04==0) to generate df_tofit used throughout for fitting . NB Filtering on eps means 15% data obs removed but I think it is needed in order to avoid weird outliers

dim(dfe_sift)

[1] 322  28

species_low_nchr <- c("Qmango", "Shua", "Bnana")
dfe_sift <- dfe_sift %>%
  filter(!(species %in% species_low_nchr)) %>%
  filter(eps <0.1)  #
dim(dfe_sift)

[1] 322  28

dim(dfe_sift)

[1] 322  28

table(dfe_sift$category)

      0:DEL-DEL     0:DEL-EXDEL    0:DEL-STABLE       0:DEL-TOL     0:EXDEL-DEL
             22              19              22              22              16
  0:EXDEL-EXDEL  0:EXDEL-STABLE     0:EXDEL-TOL    0:STABLE-DEL  0:STABLE-EXDEL
             12              22              16              22              22
0:STABLE-STABLE    0:STABLE-TOL       0:TOL-DEL     0:TOL-EXDEL    0:TOL-STABLE
             18              22              22              21              22
      0:TOL-TOL
             22

# dfe_sift %>% filter(cat04==0) -> df_tofit
dfe_sift  -> df_tofit

dim(df_tofit)

[1] 322  28

names(df_tofit)

 [1] "species"     "group"       "category"    "fold"        "from"
 [6] "to"          "delta"       "PiS"         "PiN"         "PiNPiS"
[11] "syn_counts"  "nsyn_counts" "Lsyn"        "Lnsyn"       "TD4"
[16] "TD0"         "GC3"         "gradient"    "eps"         "Sd"
[21] "beta"        "pb"          "Sb"          "alpha"       "D1"
[26] "D2"          "D3"          "D4"

length(unique(df_tofit$species))

[1] 22

Dependent variable : \(\frac{P_0}{P_4}\)

We use the corrected \(\frac{P_0}{P_4}\) analogous to \(\frac{\pi_N}{\pi_S}\)

We correct by adding +1 to every count: \(\pi_N =\frac{n_N + 1}{L_N + 1}\) and \(\pi_S =\frac{n_S + 1}{L_S + 1}\) we can then directly use a log scale

df_tofit$PiNPiScor <- (df_tofit$nsyn_counts+1)*(df_tofit$Lsyn+1)/((df_tofit$Lnsyn+1)*(df_tofit$syn_counts+1))

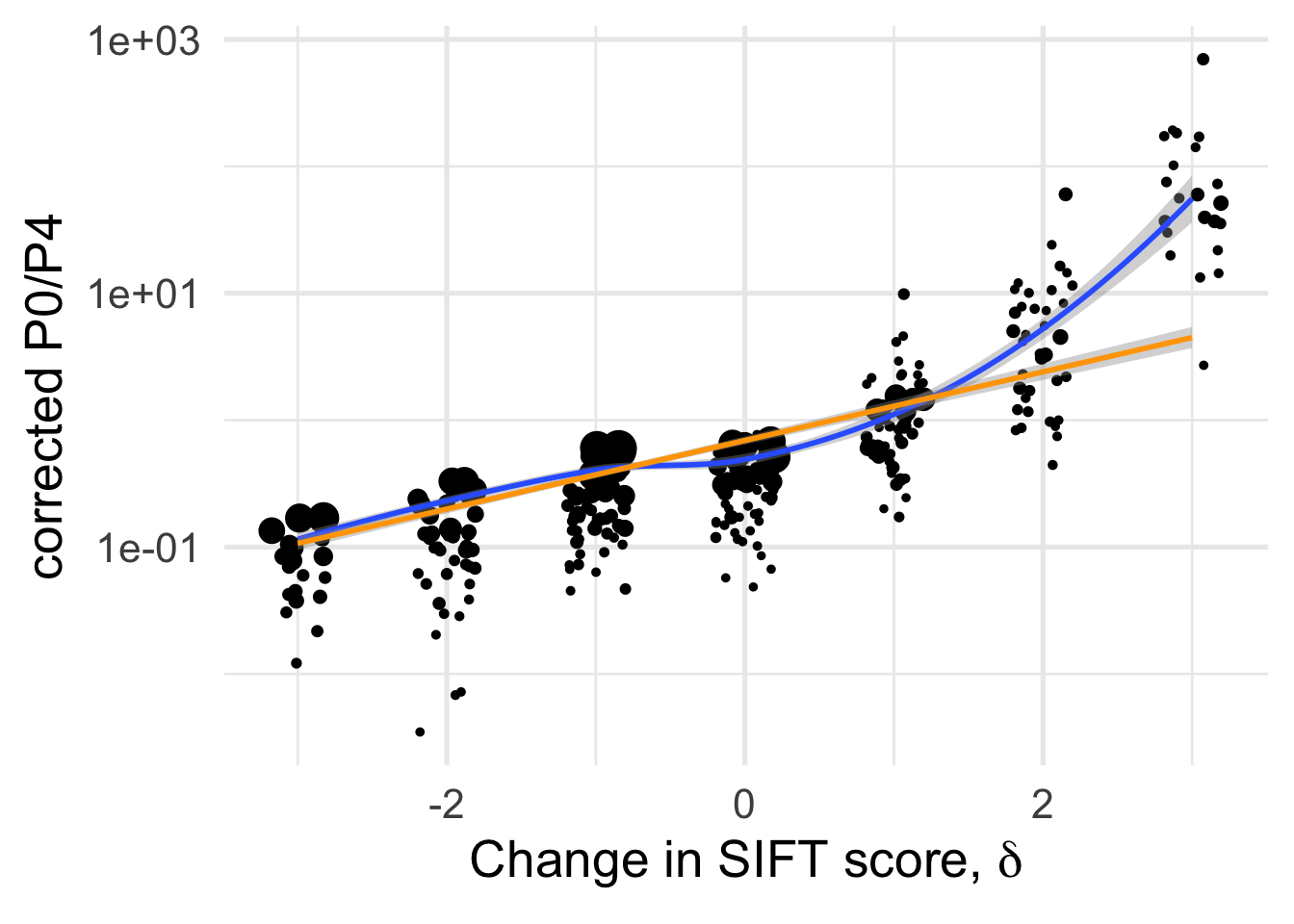

df_tofit %>%
  # filter(cat04==0) %>%
  ggplot(aes(x=delta, y=PiNPiScor, weight=(1+nsyn_counts)) )+
  # geom_point(aes(size = nsyn_counts)) +
  geom_jitter(width = 0.2, aes(size = nsyn_counts)) +
  scale_y_log10() +
  # facet_wrap(~ group) +
  geom_smooth(method = "loess", formula ="y~ x", se =T, aes(color=NULL))+
  geom_smooth(method = "lm", formula ="y~ x", se =T, aes(color=NULL), color="orange")+
  theme_minimal(base_size = 20)+
  xlab(expression(paste("Change in SIFT score, " , delta)))+
  ylab("corrected P0/P4")+
  scale_color_colorblind()+
  theme(legend.position = "none")+
  NULL

Past versions of unnamed-chunk-2-1.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

# ggsave("manuscript_GBE/manuscript_GBE_Jun2/figures_update_Feb2020/corrected_p0p4_delta.pdf", device = "pdf")

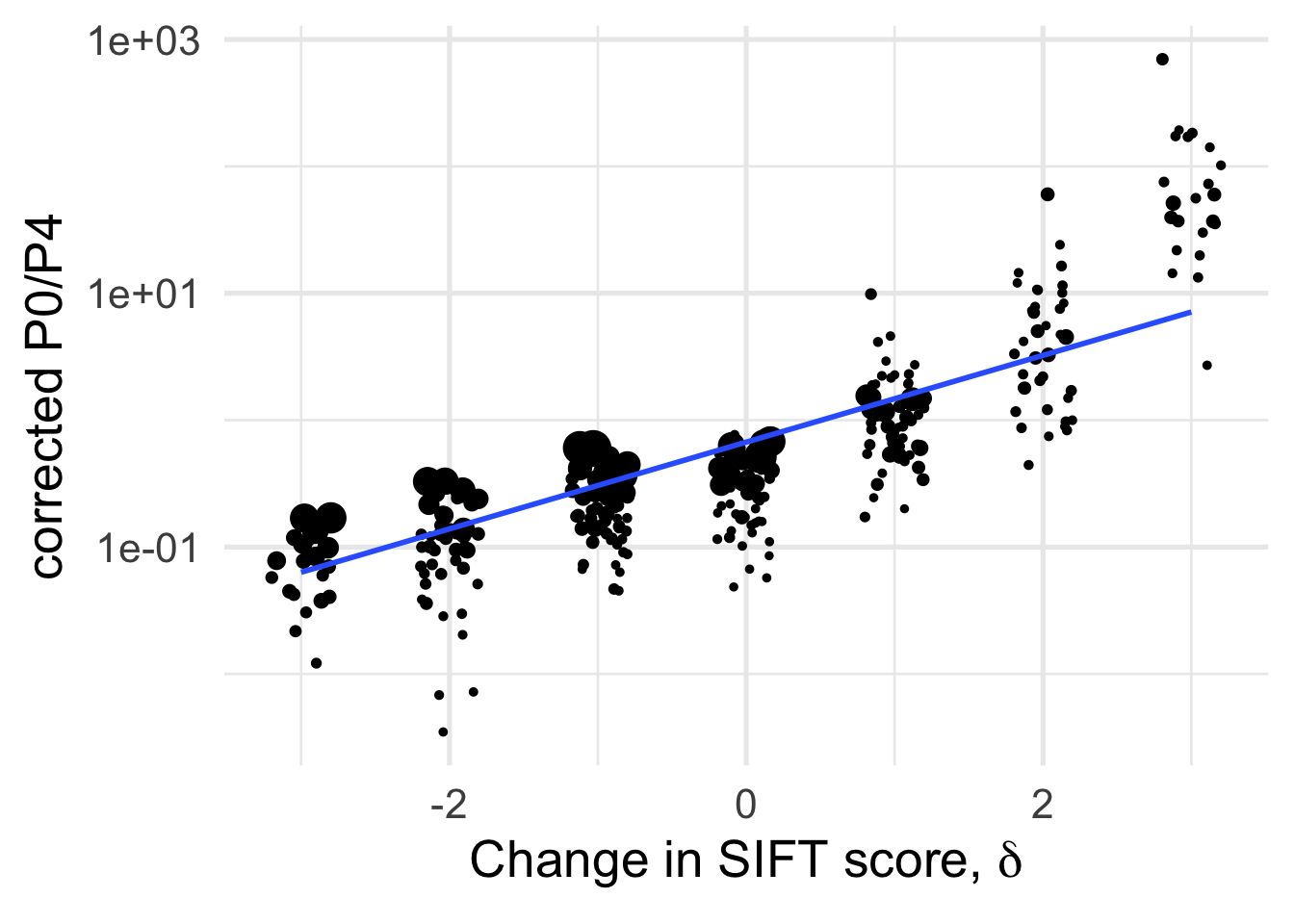

A (linear) fit for each species separately

df_tofit %>%
  # filter(cat04==0) %>%
  ggplot(aes(x=delta, y=PiNPiScor, weight=sqrt((1+nsyn_counts))) )+
  # geom_point(aes(size = nsyn_counts)) +
  geom_jitter(width = 0.2, aes(size = nsyn_counts)) +
  scale_y_log10() +
  # facet_wrap(~ group) +
  geom_smooth(method = "lm", formula ="y~ x", se =F)+
  theme_minimal(base_size = 20)+
  xlab(expression(paste("Change in SIFT score, " , delta)))+
  ylab("corrected P0/P4")+
  scale_color_viridis_d(direction = -1)+
  theme(legend.position = "none")+
  NULL# ggsave("manuscript_GBE/manuscript_GBE_Jun2/figures_update_Feb2020/corrected_p0p4_delta_manyslopes.pdf",device = "pdf")

Past versions of unnamed-chunk-3-1.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

Linear (mixed) models

dim(df_tofit)

[1] 322  29

df_tofit$weights <- sqrt(df_tofit$nsyn_counts)

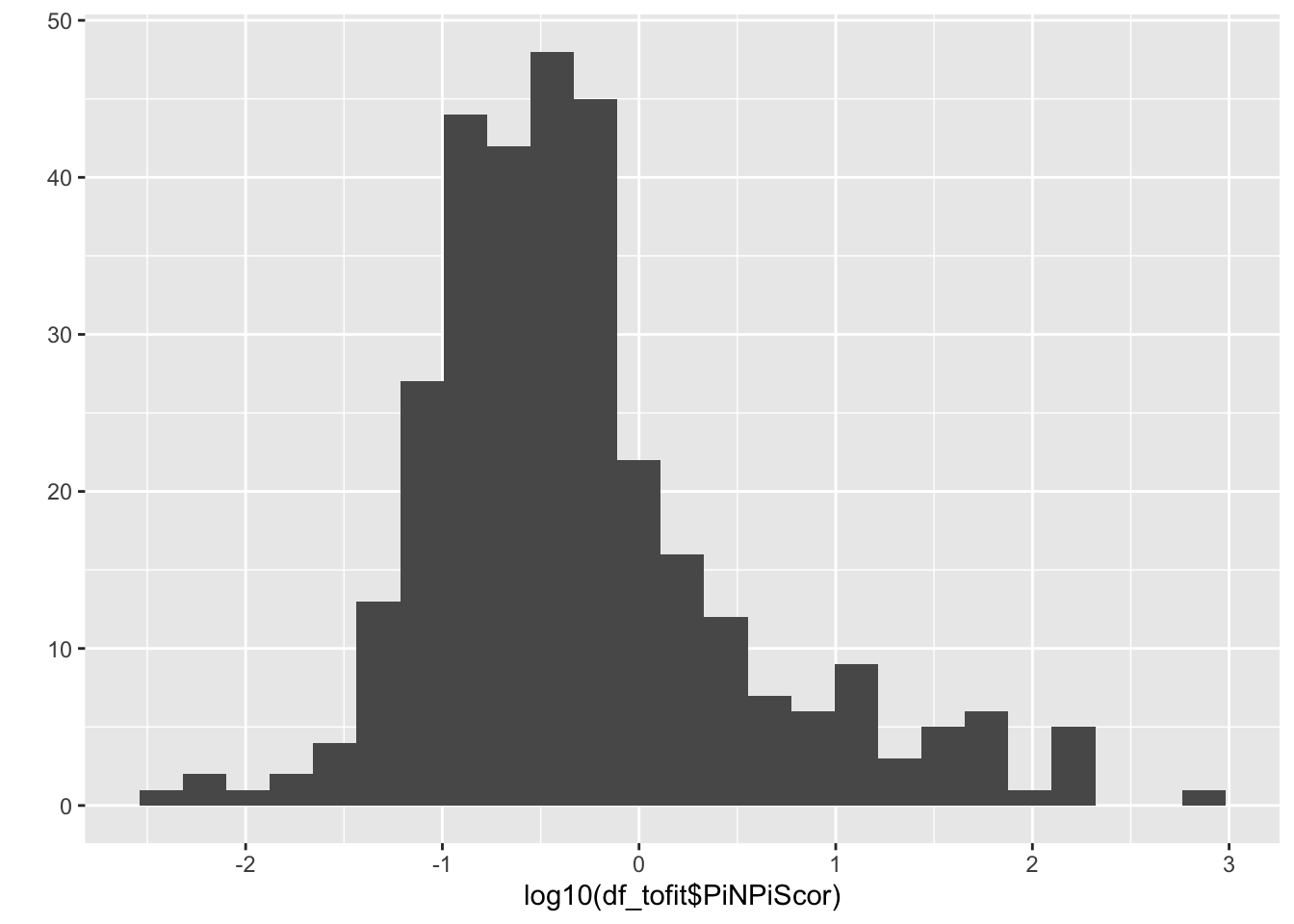

qplot(log10(df_tofit$PiNPiScor), bins = 25)

Past versions of unnamed-chunk-4-1.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

# ggplot(df_tofit,
#        aes(x=delta, y = log10(PiNPiScor),
#            size = )) +
#   geom_jitter(width = 0.1)+
#   geom_smooth(method="lm", se =T)+ NULL
#

naive0 <- lm(log(PiNPiScor) ~ 1 ,
            data = df_tofit)
naive <- lm(log(PiNPiScor) ~ delta ,
            data = df_tofit)
summary(naive)

Call:
lm(formula = log(PiNPiScor) ~ delta, data = df_tofit)

Residuals:
    Min      1Q  Median      3Q     Max
-3.0001 -0.6308 -0.0714  0.5888  4.1915

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) -0.65193    0.05637  -11.56   <2e-16 ***
delta        1.00326    0.03484   28.80   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.011 on 320 degrees of freedom
Multiple R-squared:  0.7216,    Adjusted R-squared:  0.7207
F-statistic: 829.3 on 1 and 320 DF,  p-value: < 2.2e-16

# plot(naive)

AIC(naive)

[1] 924.9761

mixed_1 <-lmer(formula = log(PiNPiScor) ~ delta +(1|species) + GC3,
     data = df_tofit, REML =F )

merTools::modelInfo(mixed_1)

  n.obs n.lvls      AIC     sigma
1   322      1 917.0645 0.9594275

lmerTest::ranova(mixed_1)

ANOVA-like table for random-effects: Single term deletions

Model:
log(PiNPiScor) ~ delta + GC3 + (1 | species)
              npar  logLik    AIC    LRT Df Pr(>Chisq)
<none>           5 -453.53 917.06
(1 | species)    4 -458.99 925.98 10.916  1  0.0009534 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

mixed_2 <-lmer(formula = log(PiNPiScor) ~  delta +(0 + delta |species) + GC3,
     data = df_tofit,  REML =F )

AIC(mixed_2)

[1] 921.301

merTools::modelInfo(mixed_2)

  n.obs n.lvls     AIC     sigma
1   322      1 921.301 0.9702108

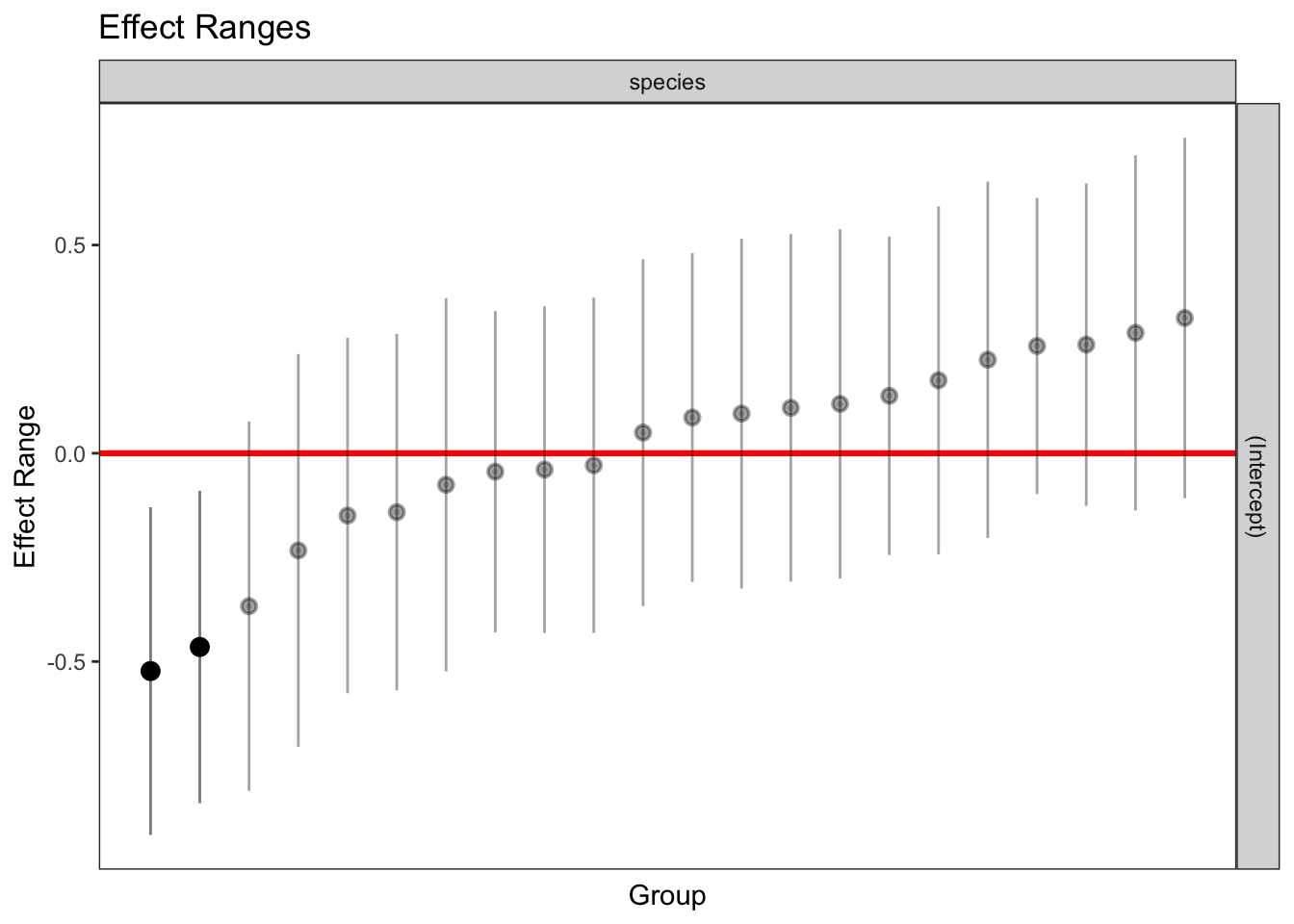

plotREsim(REsim(mixed_1)) # estimated random effects (intercepts) for each sp

Past versions of unnamed-chunk-4-2.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

summary(mixed_2)

Linear mixed model fit by maximum likelihood . t-tests use Satterthwaite's
  method [lmerModLmerTest]
Formula: log(PiNPiScor) ~ delta + (0 + delta | species) + GC3
   Data: df_tofit

     AIC      BIC   logLik deviance df.resid
   921.3    940.2   -455.7    911.3      317

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.8074 -0.6370 -0.0664  0.5968  3.2289

Random effects:
 Groups   Name  Variance Std.Dev.
 species  delta 0.02863  0.1692
 Residual       0.94131  0.9702
Number of obs: 322, groups:  species, 22

Fixed effects:
             Estimate Std. Error        df t value Pr(>|t|)
(Intercept)  -1.22692    0.57135 301.09865  -2.147   0.0326 *
delta         1.01025    0.04923  20.21591  20.522 5.22e-15 ***
GC3           1.21302    1.19566 301.04356   1.015   0.3111
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Correlation of Fixed Effects:
      (Intr) delta
delta -0.016
GC3   -0.996  0.018

plotREsim(REsim(mixed_2)) # estimated random effects (slopes) for each sp relative to the common slope

Past versions of unnamed-chunk-4-3.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

Summary of fits

vec_aic = c(AIC(naive0), AIC(naive), AIC(mixed_1), AIC(mixed_2))
models_names = c("lm no slope", "lm slope", "random intercept", "random slope")
df_table <- tibble(models_names, vec_aic)
knitr::kable(df_table, digits = 2, col.names = c("Models for P0/P4 ratio", "AIC"))

Models for P0/P4 ratio	AIC
lm no slope	1334.67
lm slope	924.98
random intercept	917.06
random slope	921.30

1 - (deviance(mixed_2) /(1334.67))

[1] 0.3172088

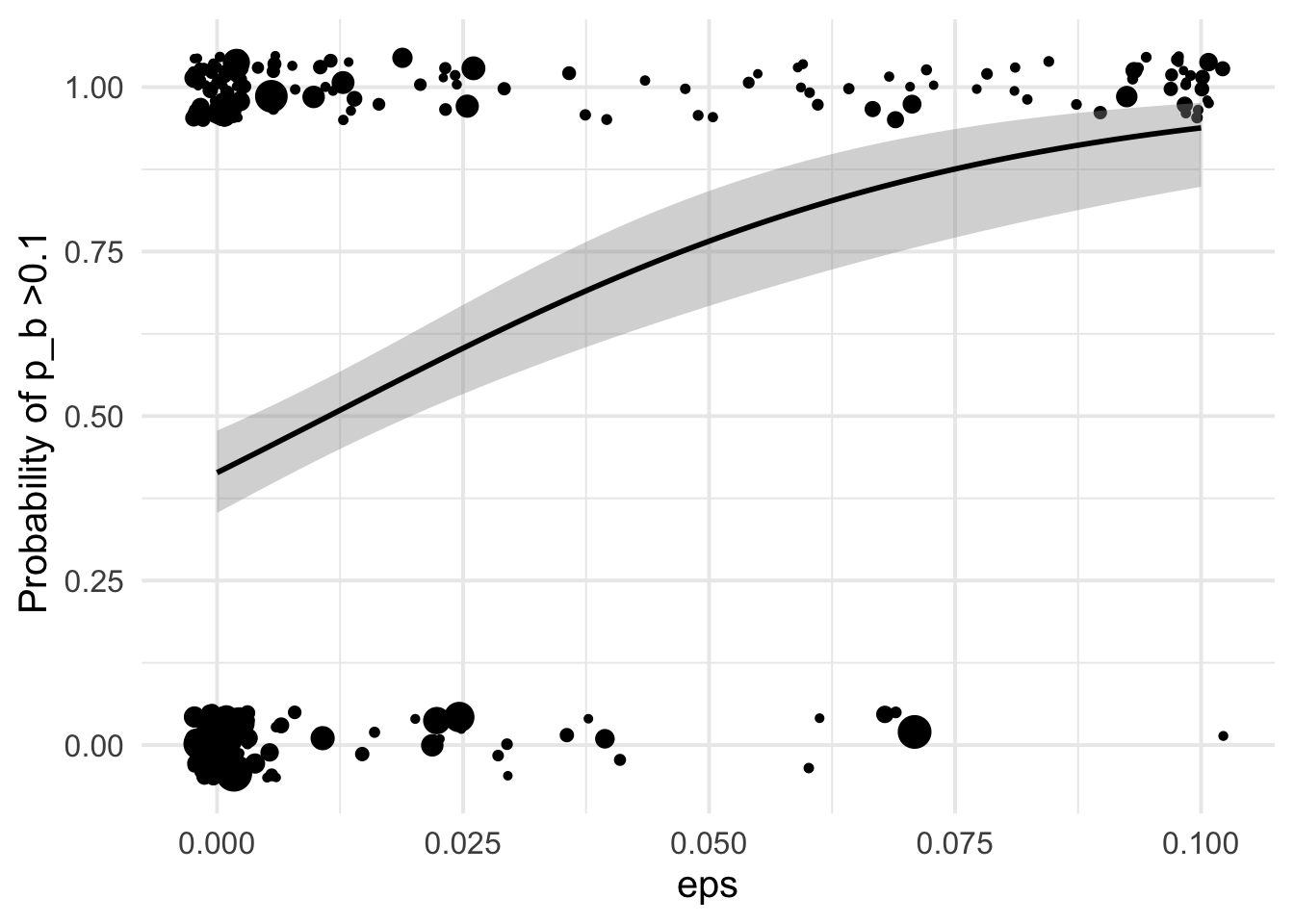

Tech check: influence of eps

naive0 <- lm(log(PiNPiScor) ~ eps ,
            data = df_tofit)
summary(naive0)

Call:
lm(formula = log(PiNPiScor) ~ eps, data = df_tofit)

Residuals:
    Min      1Q  Median      3Q     Max
-4.7010 -1.1764 -0.3760  0.5029  7.4718

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  -0.9601     0.1200  -8.004 2.25e-14 ***
eps          14.3176     3.2290   4.434 1.27e-05 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.86 on 320 degrees of freedom
Multiple R-squared:  0.05788,   Adjusted R-squared:  0.05494
F-statistic: 19.66 on 1 and 320 DF,  p-value: 1.273e-05

naive <- lm(log(PiNPiScor) ~ eps + delta + GC3,
            data = df_tofit)
summary(naive)

Call:
lm(formula = log(PiNPiScor) ~ eps + delta + GC3, data = df_tofit)

Residuals:
    Min      1Q  Median      3Q     Max
-2.9375 -0.6546 -0.0559  0.5646  4.0778

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) -1.17284    0.59173  -1.982   0.0483 *
eps         -3.86523    1.86450  -2.073   0.0390 *
delta        1.03108    0.03702  27.854   <2e-16 ***
GC3          1.24931    1.23655   1.010   0.3131
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.006 on 318 degrees of freedom
Multiple R-squared:  0.7261,    Adjusted R-squared:  0.7235
F-statistic:   281 on 3 and 318 DF,  p-value: < 2.2e-16

anova(naive, test = "F")

Analysis of Variance Table

Response: log(PiNPiScor)
           Df Sum Sq Mean Sq  F value    Pr(>F)
eps         1  68.02   68.02  67.2088 6.075e-15 ***
delta       1 784.29  784.29 774.8765 < 2.2e-16 ***
GC3         1   1.03    1.03   1.0207    0.3131
Residuals 318 321.86    1.01
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

car::vif(naive)

Registered S3 methods overwritten by 'car':
  method                          from
  influence.merMod                lme4
  cooks.distance.influence.merMod lme4
  dfbeta.influence.merMod         lme4
  dfbetas.influence.merMod        lme4

     eps    delta      GC3
1.139763 1.140597 1.000781

# plot(naive)

AIC(naive)

[1] 923.6579

mixed_1 <-lmer(formula = log(PiNPiScor) ~ eps + delta +(1|species) + GC3,
     data = df_tofit, REML =F )

merTools::modelInfo(mixed_1)

  n.obs n.lvls     AIC     sigma
1   322      1 914.672 0.9530258

lmerTest::ranova(mixed_1)

ANOVA-like table for random-effects: Single term deletions

Model:
log(PiNPiScor) ~ eps + delta + GC3 + (1 | species)
              npar  logLik    AIC    LRT Df Pr(>Chisq)
<none>           6 -451.34 914.67
(1 | species)    5 -456.83 923.66 10.986  1  0.0009181 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

mixed_2 <-lmer(formula = log(PiNPiScor) ~  eps + delta +(0 + delta |species) +GC3,
     data = df_tofit,  REML =F )

AIC(mixed_2)

[1] 916.6742

merTools::modelInfo(mixed_2)

  n.obs n.lvls      AIC     sigma
1   322      1 916.6742 0.9566721

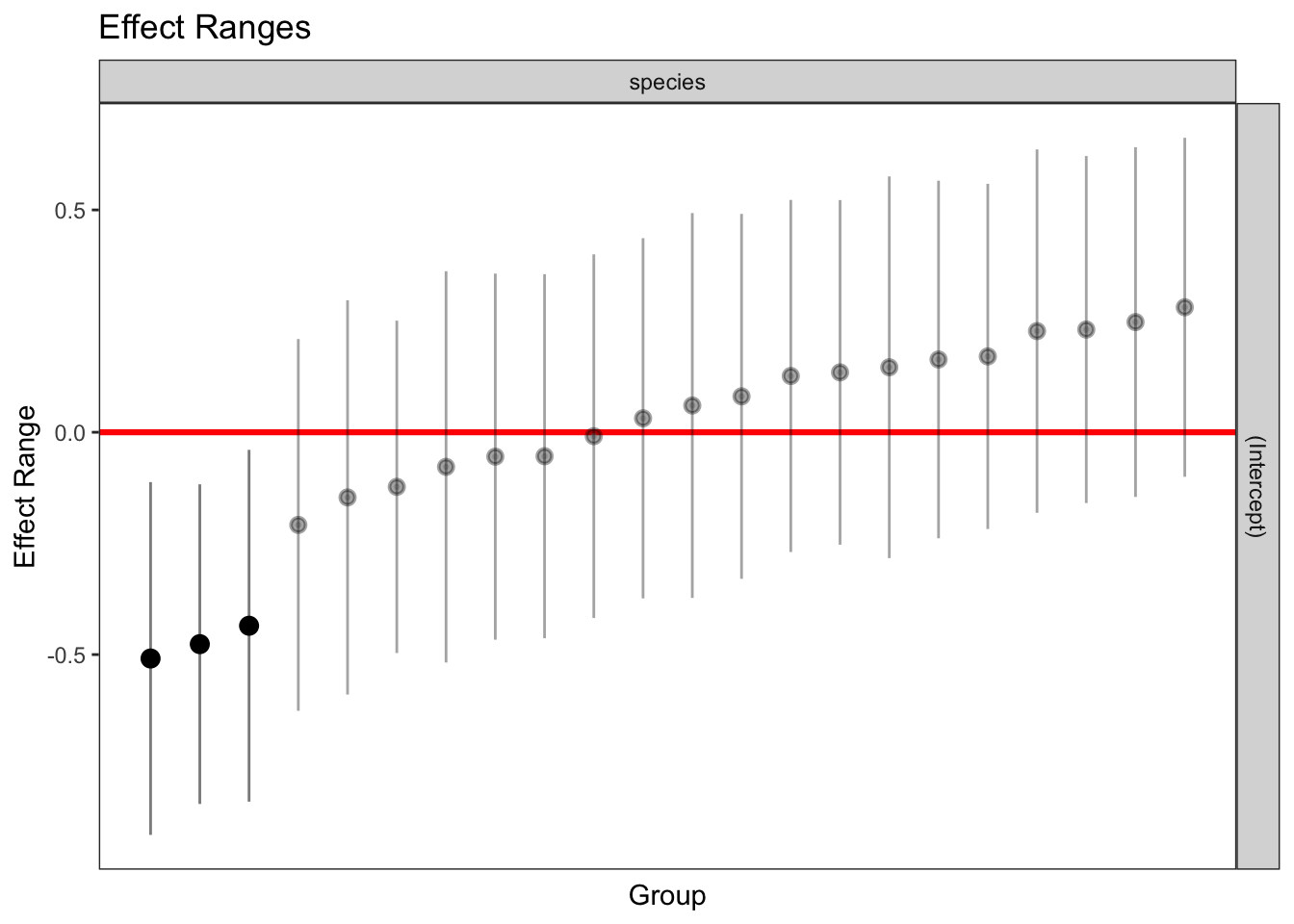

plotREsim(REsim(mixed_1)) # estimated random effects (intercepts) for each sp

Past versions of unnamed-chunk-7-1.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

summary(mixed_2)

Linear mixed model fit by maximum likelihood . t-tests use Satterthwaite's
  method [lmerModLmerTest]
Formula: log(PiNPiScor) ~ eps + delta + (0 + delta | species) + GC3
   Data: df_tofit

     AIC      BIC   logLik deviance df.resid
   916.7    939.3   -452.3    904.7      316

Scaled residuals:
    Min      1Q  Median      3Q     Max
-2.7872 -0.6122 -0.0811  0.5955  3.3003

Random effects:
 Groups   Name  Variance Std.Dev.
 species  delta 0.03387  0.1840
 Residual       0.91522  0.9567
Number of obs: 322, groups:  species, 22

Fixed effects:
             Estimate Std. Error        df t value Pr(>|t|)
(Intercept)  -1.12812    0.56476 301.63540  -1.998   0.0467 *
eps          -4.82117    1.84767 321.68074  -2.609   0.0095 **
delta         1.04440    0.05288  22.81322  19.751 7.65e-16 ***
GC3           1.19834    1.17927 300.91162   1.016   0.3104
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Correlation of Fixed Effects:
      (Intr) eps    delta
eps   -0.066
delta  0.001 -0.243
GC3   -0.994  0.004  0.015

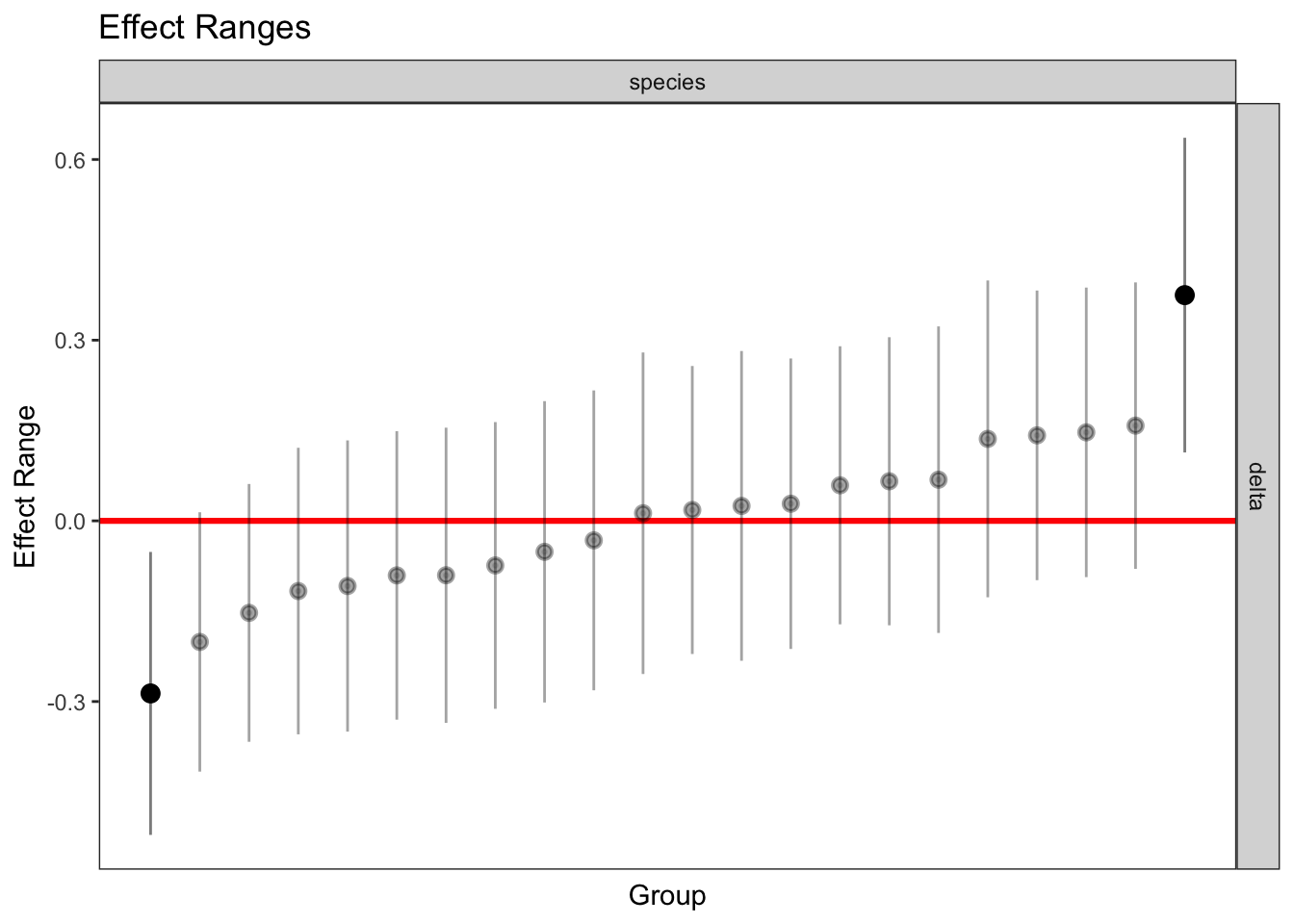

plotREsim(REsim(mixed_2)) # estimated random effects (slopes) for each sp relative to the common slope

Past versions of unnamed-chunk-7-2.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

vec_aic = c(AIC(naive0), AIC(naive), AIC(mixed_1), AIC(mixed_2))
models_names = c("lm no slope", "lm slope", "random intercept", "random slope")
df_table <- tibble(models_names, vec_aic)
knitr::kable(df_table, digits = 2, col.names = c("Models for P0/P4 ratio", "AIC"))

Models for P0/P4 ratio	AIC
lm no slope	1317.47
lm slope	923.66
random intercept	914.67
random slope	916.67

Dependent variable : \(p_b\)

Here if we want to analyse variation in \(p_b\), we probably need to discretize the data and go a logistic regression on the two categories

Overview

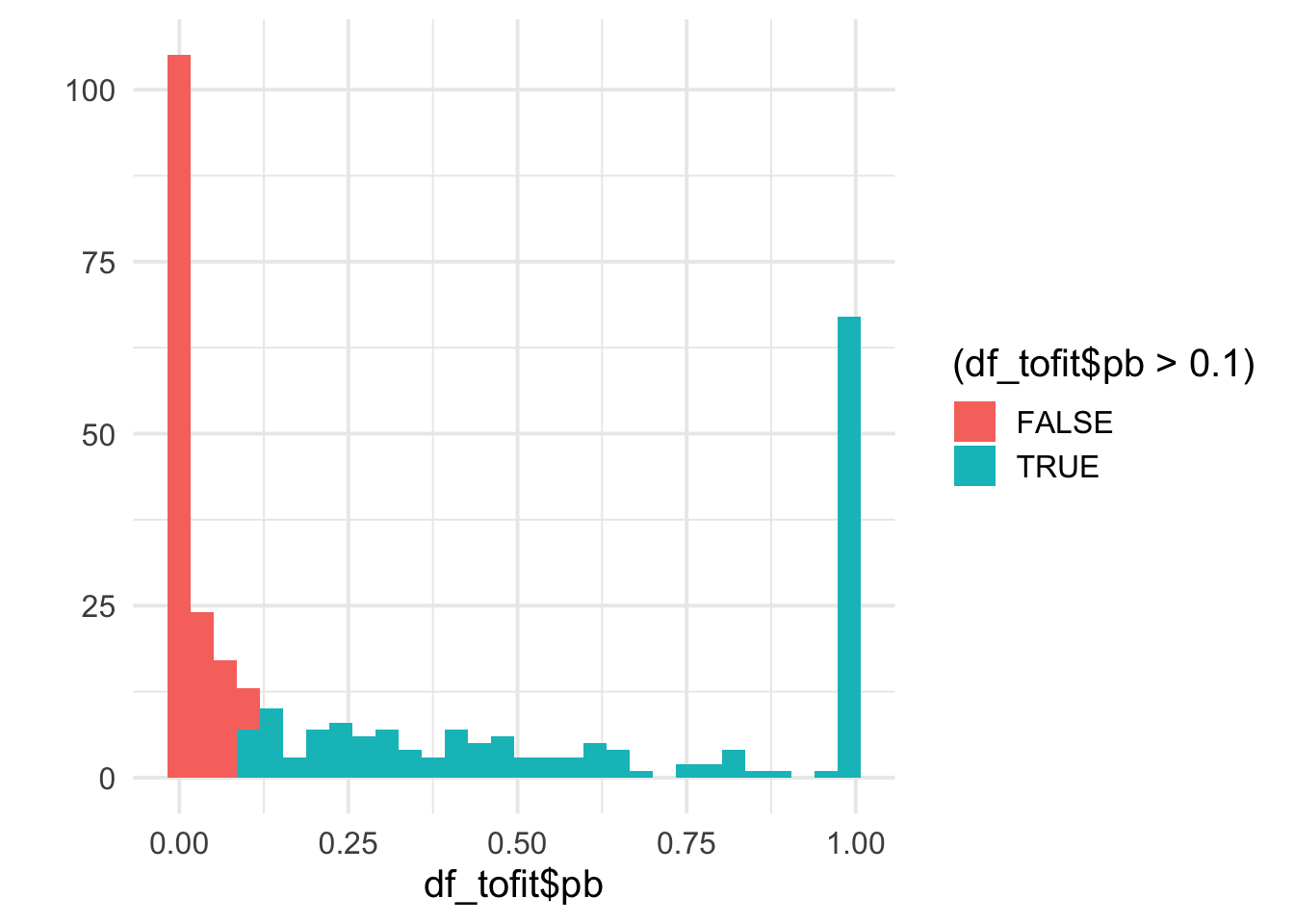

qplot(df_tofit$pb, bins = 30, fill = (df_tofit$pb>0.1)) +
  theme_minimal(base_size = 15)

Past versions of unnamed-chunk-8-1.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

df_tofit <- mutate(df_tofit, benef_mut = ifelse(pb<0.1,  0, 1))
table(df_tofit$benef_mut) %>% kable(col.names = c("benef_mut", "n"))

benef_mut	n
0	152
1	170

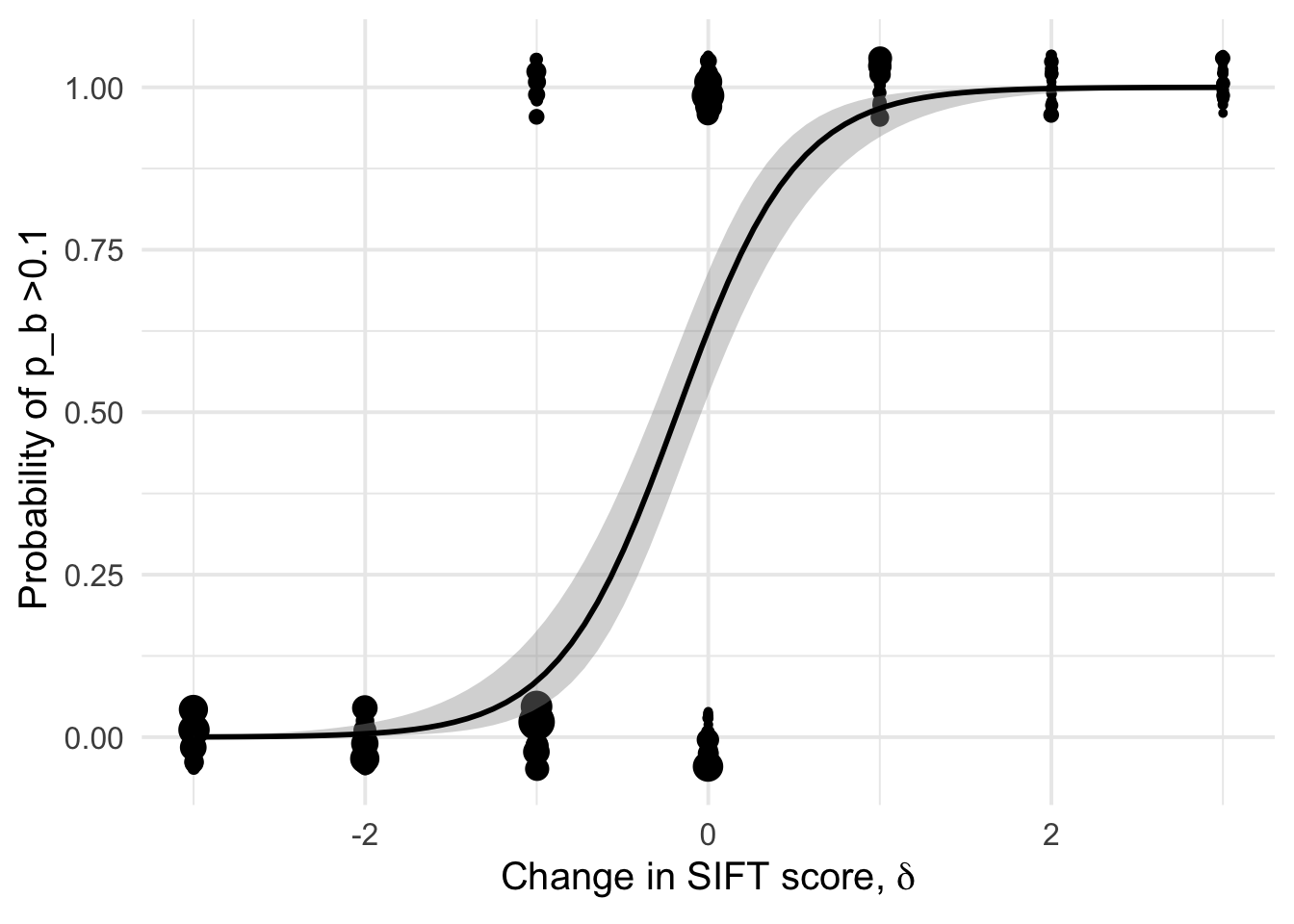

  df_tofit %>%
  ggplot(aes(x=delta, y=benef_mut, weight=sqrt((1+nsyn_counts))) )+
  # geom_point(aes(size = nsyn_counts)) +
  geom_jitter( width = 0.15, height = 0.05, aes(size = nsyn_counts)) +
  geom_smooth(method = "glm",
              method.args=list(family="binomial"), se=T, aes(color="black"), size = 2) +
  theme_minimal(base_size = 20)+
  xlab(expression(paste("Change in SIFT score, " , delta)))+
  ylab(expression(paste("Probability of " , p[b], " > 0.1")))+
  scale_color_viridis_d()+
  theme(legend.position = "none")+
  NULL

`geom_smooth()` using formula 'y ~ x'

Warning in eval(family$initialize): non-integer #successes in a binomial glm!

Past versions of unnamed-chunk-9-1.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

A loess fit for each species separately

Linear (mixed) models

# df_tofit<- df_tofit[-c(247),] # 1 mega outlier
dim(df_tofit)

[1] 322  31

df_tofit$weights <- sqrt(df_tofit$nsyn_counts)


naive0 <- glm(benef_mut  ~ 1 , family = "binomial",
            data = df_tofit)
summary(naive0)

Call:
glm(formula = benef_mut ~ 1, family = "binomial", data = df_tofit)

Deviance Residuals:
   Min      1Q  Median      3Q     Max
-1.225  -1.225   1.130   1.130   1.130

Coefficients:
            Estimate Std. Error z value Pr(>|z|)
(Intercept)   0.1119     0.1116   1.003    0.316

(Dispersion parameter for binomial family taken to be 1)

    Null deviance: 445.38  on 321  degrees of freedom
Residual deviance: 445.38  on 321  degrees of freedom
AIC: 447.38

Number of Fisher Scoring iterations: 3

naive0$deviance

[1] 445.38

naive <- glm(benef_mut  ~ delta + GC3 , family = "binomial",
            data = df_tofit)
summary(naive)

Call:
glm(formula = benef_mut ~ delta + GC3, family = "binomial", data = df_tofit)

Deviance Residuals:
     Min        1Q    Median        3Q       Max
-1.60990  -0.37654   0.01403   0.24966   2.33819

Coefficients:
            Estimate Std. Error z value Pr(>|z|)
(Intercept)   2.7715     2.0184   1.373     0.17
delta         2.8966     0.3647   7.943 1.98e-15 ***
GC3          -4.7360     4.2077  -1.126     0.26
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for binomial family taken to be 1)

    Null deviance: 445.38  on 321  degrees of freedom
Residual deviance: 154.73  on 319  degrees of freedom
AIC: 160.73

Number of Fisher Scoring iterations: 7

anova(naive0, naive, test="Chisq")

Analysis of Deviance Table

Model 1: benef_mut ~ 1
Model 2: benef_mut ~ delta + GC3
  Resid. Df Resid. Dev Df Deviance  Pr(>Chi)
1       321     445.38
2       319     154.73  2   290.65 < 2.2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

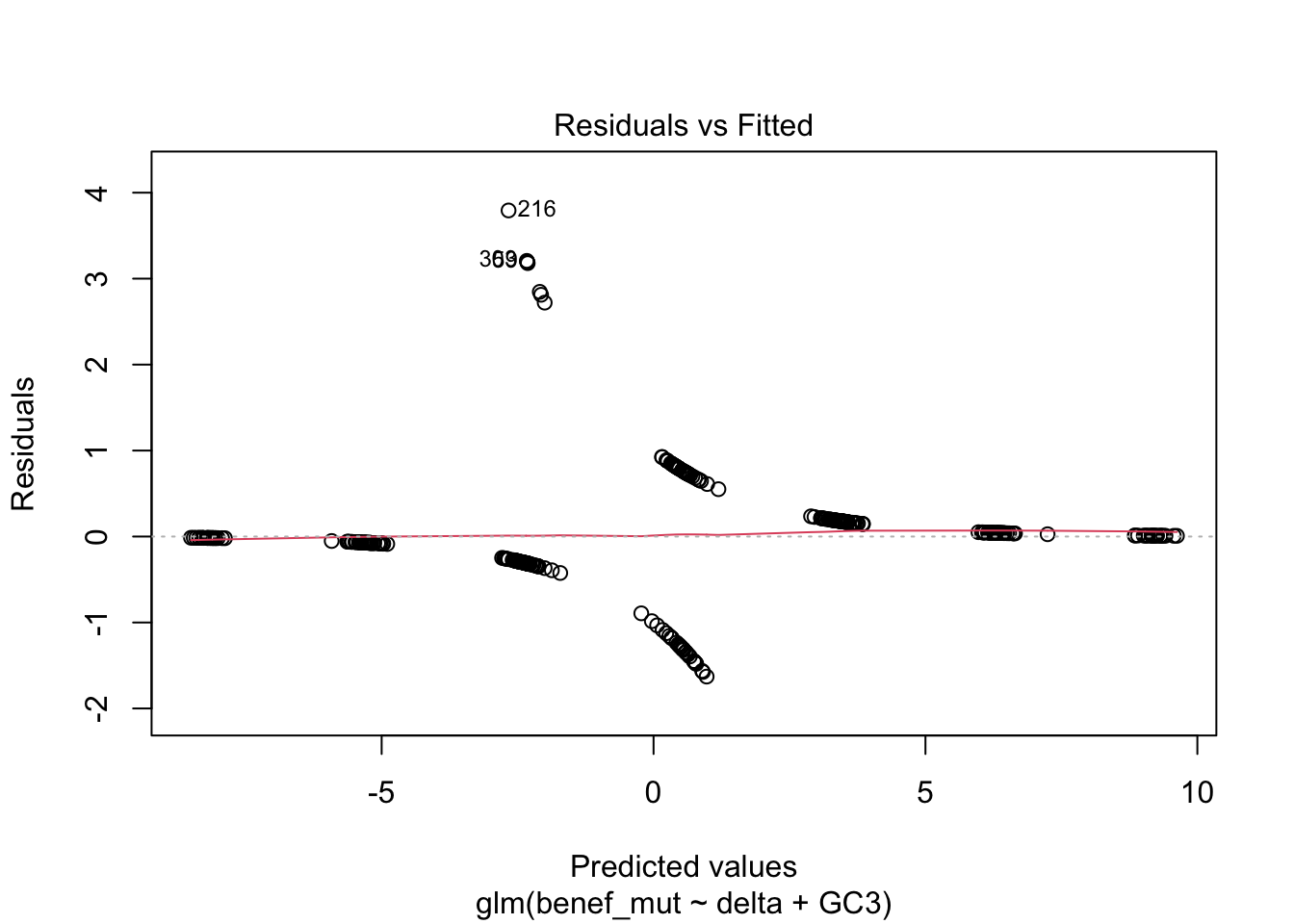

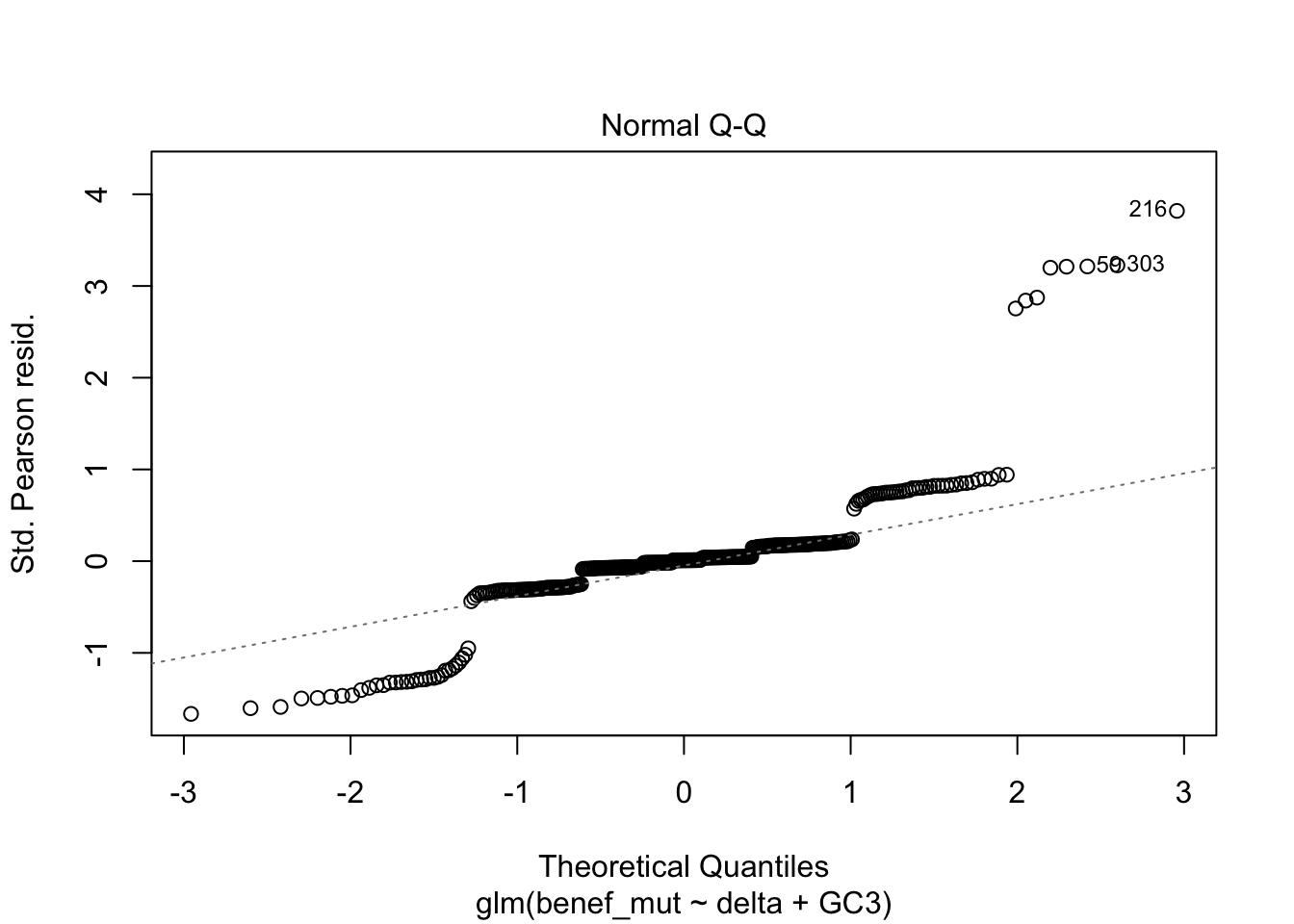

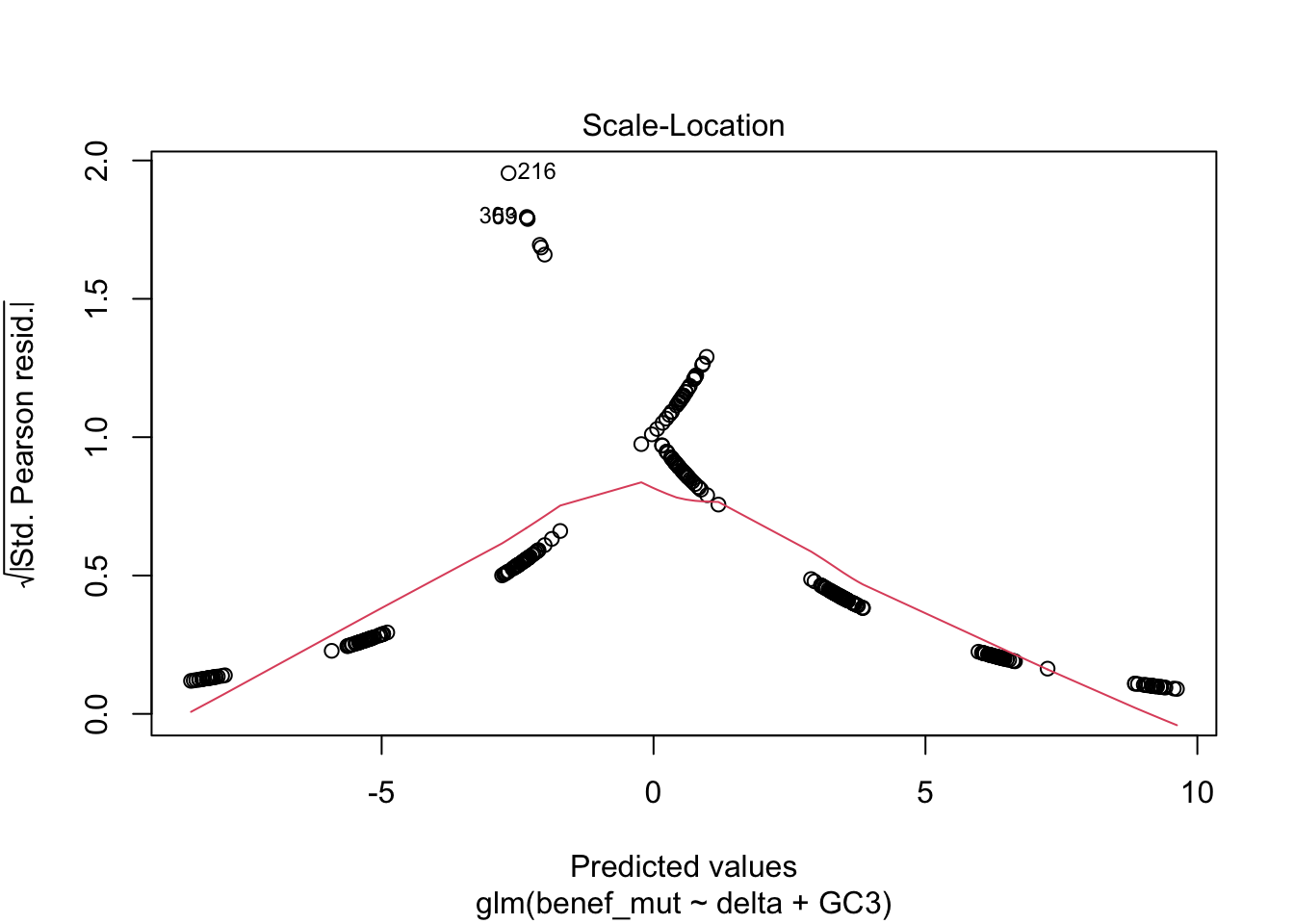

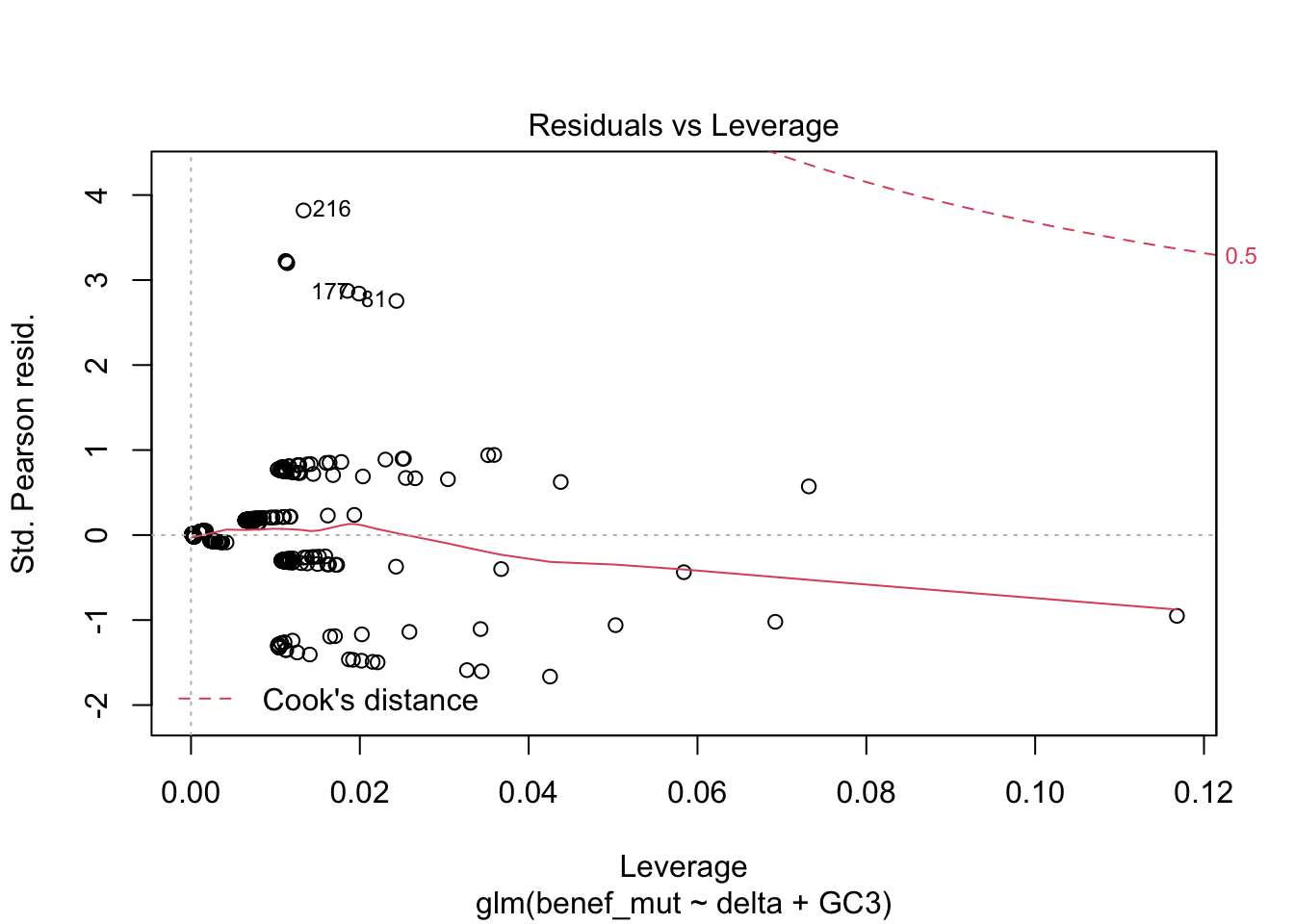

plot(naive)

Past versions of unnamed-chunk-10-1.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

Past versions of unnamed-chunk-10-2.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

Past versions of unnamed-chunk-10-3.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

Past versions of unnamed-chunk-10-4.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

1 - (naive$deviance/naive0$deviance) # pseudo R^2

[1] 0.6525807

AIC(naive)

[1] 160.7336

mixed_1 <-glmer(benef_mut ~ delta +(1|species) , family = "binomial",
     data = df_tofit )

AIC(mixed_1)

[1] 161.5645

summary(mixed_1)

Generalized linear mixed model fit by maximum likelihood (Laplace
  Approximation) [glmerMod]
 Family: binomial  ( logit )
Formula: benef_mut ~ delta + (1 | species)
   Data: df_tofit

     AIC      BIC   logLik deviance df.resid
   161.6    172.9    -77.8    155.6      319

Scaled residuals:
    Min      1Q  Median      3Q     Max
-1.5858 -0.2553  0.0084  0.1698  3.1883

Random effects:
 Groups  Name        Variance Std.Dev.
 species (Intercept) 0.2315   0.4811
Number of obs: 322, groups:  species, 22

Fixed effects:
            Estimate Std. Error z value Pr(>|z|)
(Intercept)   0.5604     0.2471   2.268   0.0233 *
delta         2.9841     0.4084   7.307 2.73e-13 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Correlation of Fixed Effects:
      (Intr)
delta 0.321

merTools::modelInfo(mixed_1)

  n.obs n.lvls      AIC sigma
1   322      1 161.5645     1

mixed_2 <-glmer(formula = benef_mut ~  delta +(0 + delta |species), family = "binomial",
     data = df_tofit)

AIC(mixed_2)

[1] 161.3266

summary(mixed_2)

Generalized linear mixed model fit by maximum likelihood (Laplace
  Approximation) [glmerMod]
 Family: binomial  ( logit )
Formula: benef_mut ~ delta + (0 + delta | species)
   Data: df_tofit

     AIC      BIC   logLik deviance df.resid
   161.3    172.7    -77.7    155.3      319

Scaled residuals:
     Min       1Q   Median       3Q      Max
-1.29986 -0.23234  0.00439  0.13751  3.10008

Random effects:
 Groups  Name  Variance Std.Dev.
 species delta 0.826    0.9088
Number of obs: 322, groups:  species, 22

Fixed effects:
            Estimate Std. Error z value Pr(>|z|)
(Intercept)   0.5245     0.2100   2.498   0.0125 *
delta         3.2629     0.6507   5.015 5.32e-07 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Correlation of Fixed Effects:
      (Intr)
delta 0.162

merTools::modelInfo(mixed_2)

  n.obs n.lvls      AIC sigma
1   322      1 161.3266     1

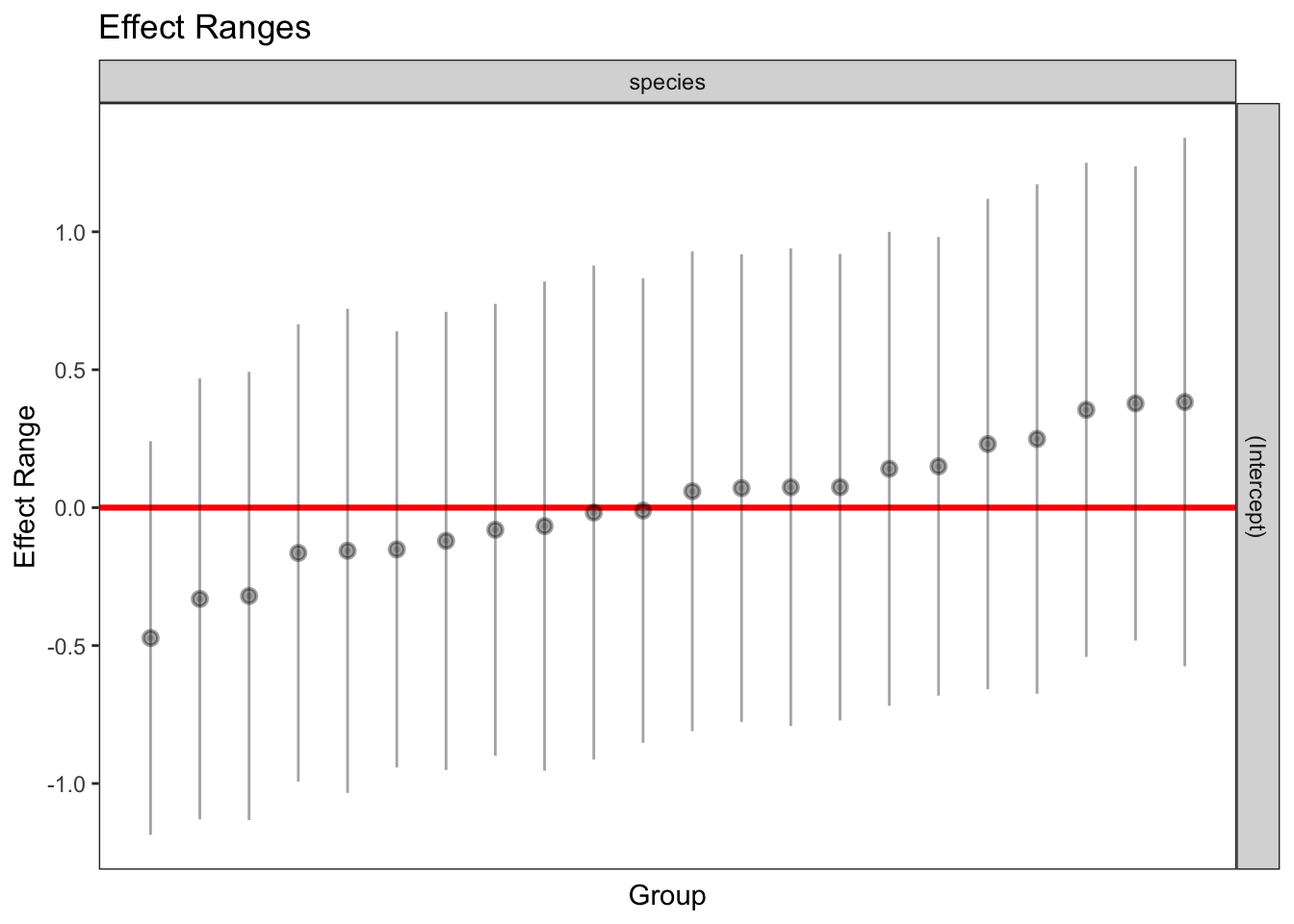

plotREsim(REsim(mixed_1)) # estimated random effects (intercepts) for each sp

Past versions of unnamed-chunk-10-5.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

plotREsim(REsim(mixed_2)) # estimated random effects (slopes) for each sp relative to the common slope

Past versions of unnamed-chunk-10-6.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

Summary of fits

vec_aic = c(AIC(naive0), AIC(naive), AIC(mixed_1), AIC(mixed_2))
models_names = c("glm no slope", "glm with slope", "glm with random intercept", "glm with random slope")
df_table <- tibble(models_names, vec_aic)
knitr::kable(df_table, digits = 2, col.names = c("Models for proportion beneficial ", "AIC"))

Models for proportion beneficial	AIC
glm no slope	447.38
glm with slope	160.73
glm with random intercept	161.56
glm with random slope	161.33

Some pseudo R^2 to compare with the linear models on the piNpiS ratio Using the deviance of mixed_2 and comparing it to the most naive model (glm no slope) aka naive0 yields a pseudo R^2:

 1 -(deviance(mixed_2)/naive0$deviance)

[1] 0.6723806

tech check with eps included in the model

naive00 <- glm(benef_mut  ~ 1 , family = "binomial",
            data = df_tofit)

naive0 <- glm(benef_mut  ~ eps , family = "binomial",
            data = df_tofit)

# updated pseudo R2
  1 -(deviance(naive0)/naive00$deviance)

[1] 0.1099998

summary(naive0)

Call:
glm(formula = benef_mut ~ eps, family = "binomial", data = df_tofit)

Deviance Residuals:
    Min       1Q   Median       3Q      Max
-2.3566  -1.0345   0.3584   1.2800   1.3280

Coefficients:
            Estimate Std. Error z value Pr(>|z|)
(Intercept)  -0.3473     0.1322  -2.628  0.00859 **
eps          30.6481     5.4826   5.590 2.27e-08 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for binomial family taken to be 1)

    Null deviance: 445.38  on 321  degrees of freedom
Residual deviance: 396.39  on 320  degrees of freedom
AIC: 400.39

Number of Fisher Scoring iterations: 4

naive0$deviance

[1] 396.3883

naive <- glm(benef_mut  ~ eps + delta + GC3, family = "binomial",
            data = df_tofit)
summary(naive)

Call:
glm(formula = benef_mut ~ eps + delta + GC3, family = "binomial",
    data = df_tofit)

Deviance Residuals:
     Min        1Q    Median        3Q       Max
-1.58904  -0.36495   0.01508   0.24802   2.36236

Coefficients:
            Estimate Std. Error z value Pr(>|z|)
(Intercept)   2.4569     2.0422   1.203    0.229
eps           9.1879     7.2332   1.270    0.204
delta         2.7935     0.3677   7.597 3.02e-14 ***
GC3          -4.4566     4.2389  -1.051    0.293
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for binomial family taken to be 1)

    Null deviance: 445.38  on 321  degrees of freedom
Residual deviance: 153.02  on 318  degrees of freedom
AIC: 161.02

Number of Fisher Scoring iterations: 7

anova(naive0, naive, test="Chisq")

Analysis of Deviance Table

Model 1: benef_mut ~ eps
Model 2: benef_mut ~ eps + delta + GC3
  Resid. Df Resid. Dev Df Deviance  Pr(>Chi)
1       320     396.39
2       318     153.02  2   243.36 < 2.2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

anova(naive, test="Chisq")

Analysis of Deviance Table

Model: binomial, link: logit

Response: benef_mut

Terms added sequentially (first to last)

      Df Deviance Resid. Df Resid. Dev  Pr(>Chi)
NULL                    321     445.38
eps    1   48.992       320     396.39  2.57e-12 ***
delta  1  242.246       319     154.14 < 2.2e-16 ***
GC3    1    1.118       318     153.02    0.2903
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

1 - (naive$deviance/naive0$deviance) # pseudo R^2

[1] 0.6139544

AIC(naive)

[1] 161.024

mixed_1 <-glmer(benef_mut ~ eps + delta +(1|species) , family = "binomial",
     data = df_tofit )

AIC(mixed_1)

[1] 161.6371

summary(mixed_1)

Generalized linear mixed model fit by maximum likelihood (Laplace
  Approximation) [glmerMod]
 Family: binomial  ( logit )
Formula: benef_mut ~ eps + delta + (1 | species)
   Data: df_tofit

     AIC      BIC   logLik deviance df.resid
   161.6    176.7    -76.8    153.6      318

Scaled residuals:
    Min      1Q  Median      3Q     Max
-1.9716 -0.2447  0.0097  0.1679  3.2852

Random effects:
 Groups  Name        Variance Std.Dev.
 species (Intercept) 0.2584   0.5083
Number of obs: 322, groups:  species, 22

Fixed effects:
            Estimate Std. Error z value Pr(>|z|)
(Intercept)   0.3652     0.2818   1.296    0.195
eps          10.1930     7.6034   1.341    0.180
delta         2.8818     0.4095   7.037 1.96e-12 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Correlation of Fixed Effects:
      (Intr) eps
eps   -0.451
delta  0.324 -0.097

merTools::modelInfo(mixed_1)

  n.obs n.lvls      AIC sigma
1   322      1 161.6371     1

mixed_2 <-glmer(formula = benef_mut ~ eps +  delta +(0 + delta |species), family = "binomial",
     data = df_tofit)

AIC(mixed_2)

[1] 161.3523

summary(mixed_2)

Generalized linear mixed model fit by maximum likelihood (Laplace
  Approximation) [glmerMod]
 Family: binomial  ( logit )
Formula: benef_mut ~ eps + delta + (0 + delta | species)
   Data: df_tofit

     AIC      BIC   logLik deviance df.resid
   161.4    176.5    -76.7    153.4      318

Scaled residuals:
    Min      1Q  Median      3Q     Max
-1.9577 -0.2194  0.0055  0.1521  3.2427

Random effects:
 Groups  Name  Variance Std.Dev.
 species delta 0.8684   0.9319
Number of obs: 322, groups:  species, 22

Fixed effects:
            Estimate Std. Error z value Pr(>|z|)
(Intercept)   0.3293     0.2483   1.326    0.185
eps          10.1583     7.5161   1.352    0.177
delta         3.1732     0.6475   4.901 9.53e-07 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Correlation of Fixed Effects:
      (Intr) eps
eps   -0.521
delta  0.164 -0.051

merTools::modelInfo(mixed_2)

  n.obs n.lvls      AIC sigma
1   322      1 161.3523     1

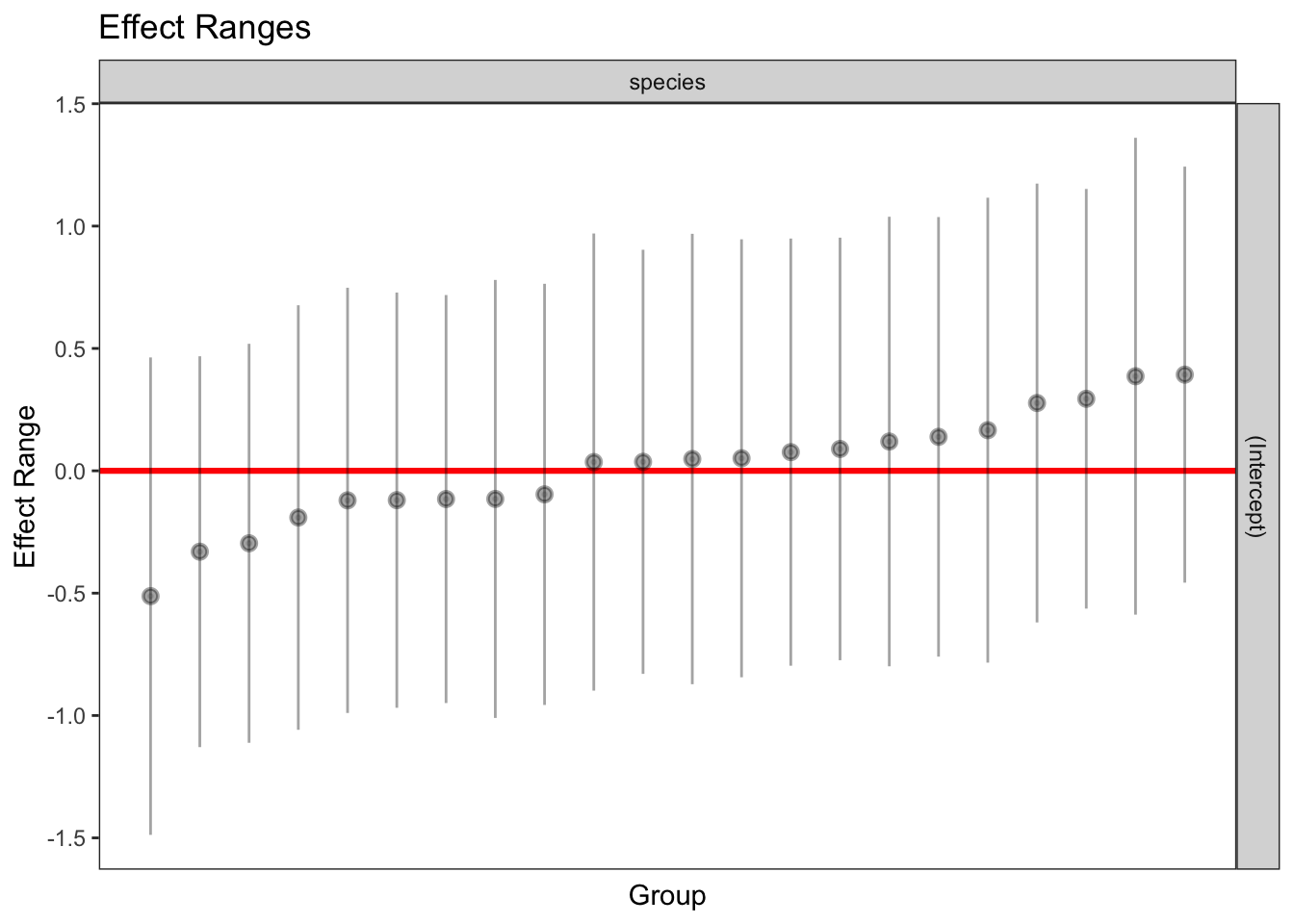

plotREsim(REsim(mixed_1)) # estimated random effects (intercepts) for each sp

Past versions of unnamed-chunk-13-1.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

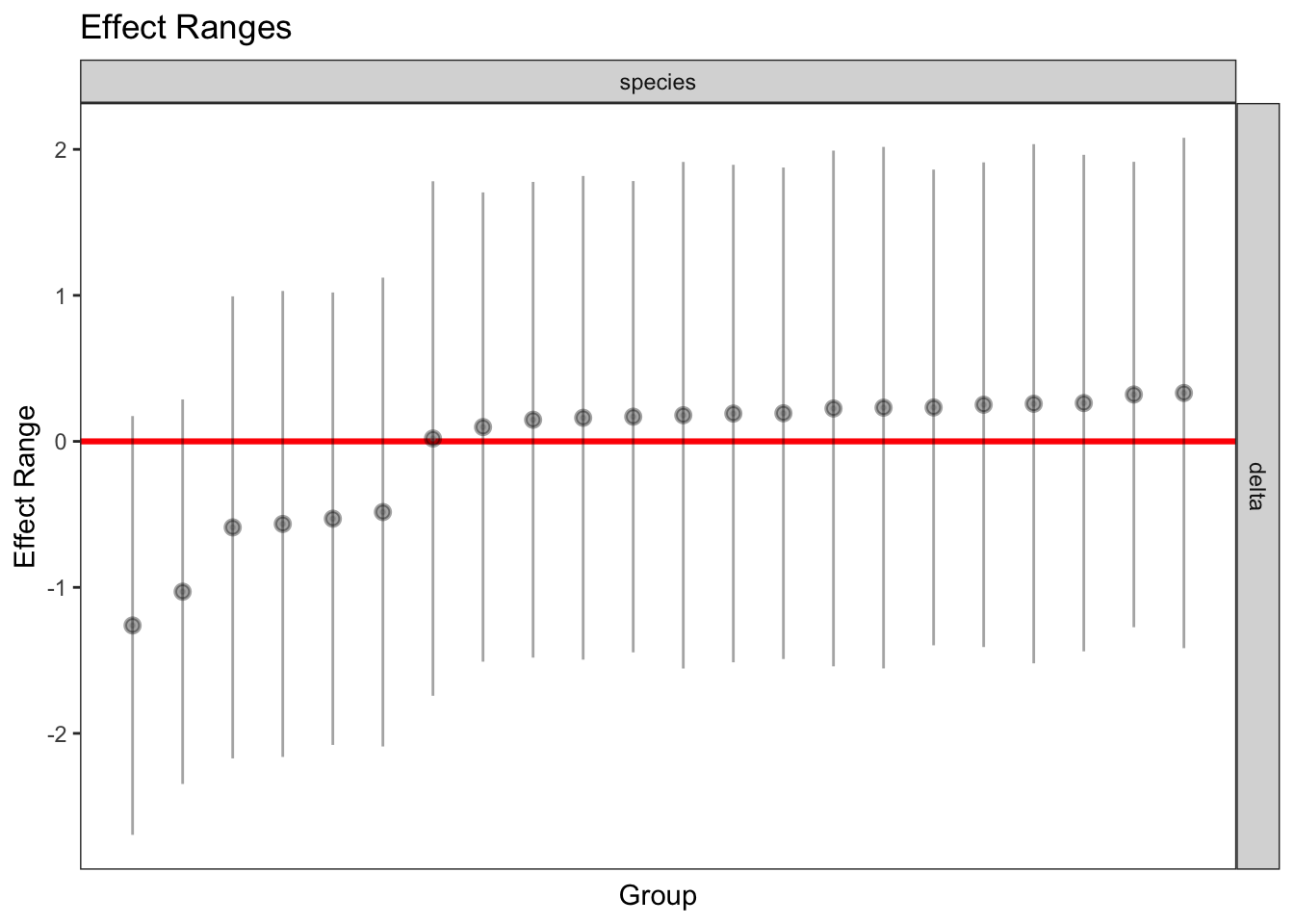

plotREsim(REsim(mixed_2)) # estimated random effects (slopes) for each sp relative to the common slope

Past versions of unnamed-chunk-13-2.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

car::vif(naive)

     eps    delta      GC3
1.028107 1.034791 1.010204

 df_tofit %>%
  ggplot(aes(x=eps, y=benef_mut))+
  # geom_point(aes(size = nsyn_counts)) +
  geom_jitter( width = 0.0025, height = 0.05, aes(size = nsyn_counts)) +
  geom_smooth(method = "glm",
              method.args=list(family="binomial"), se=T, aes(color=NULL), color="black") +
  theme_minimal(base_size = 15)+
  xlab("eps")+
  ylab("Probability of p_b >0.1 ")+
  scale_color_viridis_d()+
  theme(legend.position = "none")+
  NULL

`geom_smooth()` using formula 'y ~ x'

Past versions of unnamed-chunk-13-3.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

car::vif(naive)

     eps    delta      GC3
1.028107 1.034791 1.010204

 df_tofit %>%
  ggplot(aes(x=delta, y=benef_mut))+
  # geom_point(aes(size = nsyn_counts)) +
  geom_jitter( width = 0.0025, height = 0.05, aes(size = nsyn_counts)) +
  geom_smooth(method = "glm",
              method.args=list(family="binomial"), se=T, aes(color=NULL), color="black") +
  theme_minimal(base_size = 15)+
  xlab(expression(paste("Change in SIFT score, " , delta)))+
  ylab("Probability of p_b >0.1 ")+
  scale_color_viridis_d()+
  theme(legend.position = "none")+
  NULL

`geom_smooth()` using formula 'y ~ x'

Past versions of unnamed-chunk-13-4.png

Version	Author	Date
706a03c	Thomas Bataillon	2021-03-13

 # updated pseudo R2
  1 -(deviance(mixed_2)/naive0$deviance)

[1] 0.6379991

Session information

sessionInfo()

R version 4.0.2 (2020-06-22)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Catalina 10.15.7

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.0/Resources/lib/libRblas.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.0/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] lmerTest_3.1-3  merTools_0.5.2  arm_1.11-2      MASS_7.3-51.6
 [5] lme4_1.1-26     Matrix_1.2-18   knitr_1.29      magrittr_1.5
 [9] dplyr_1.0.2     ggthemes_4.2.0  ggplot2_3.3.2   workflowr_1.6.2

loaded via a namespace (and not attached):
 [1] nlme_3.1-148        fs_1.5.0            RColorBrewer_1.1-2
 [4] rprojroot_2.0.2     numDeriv_2016.8-1.1 tools_4.0.2
 [7] TMB_1.7.20          backports_1.1.9     R6_2.4.1
[10] rpart_4.1-15        Hmisc_4.5-0         mgcv_1.8-31
[13] colorspace_1.4-1    nnet_7.3-14         withr_2.2.0
[16] tidyselect_1.1.0    gridExtra_2.3       curl_4.3
[19] compiler_4.0.2      git2r_0.27.1        htmlTable_2.1.0
[22] labeling_0.3        scales_1.1.1        checkmate_2.0.0
[25] mvtnorm_1.1-1       blme_1.0-5          stringr_1.4.0
[28] digest_0.6.25       foreign_0.8-80      minqa_1.2.4
[31] rmarkdown_2.3       rio_0.5.26          base64enc_0.1-3
[34] jpeg_0.1-8.1        pkgconfig_2.0.3     htmltools_0.5.0
[37] fastmap_1.0.1       highr_0.8           readxl_1.3.1
[40] htmlwidgets_1.5.1   rlang_0.4.7         rstudioapi_0.11
[43] shiny_1.5.0         generics_0.0.2      farver_2.0.3
[46] broom.mixed_0.2.6   zip_2.1.1           car_3.0-10
[49] Formula_1.2-4       Rcpp_1.0.5          munsell_0.5.0
[52] abind_1.4-5         lifecycle_0.2.0     stringi_1.4.6
[55] whisker_0.4         yaml_2.2.1          carData_3.0-4
[58] plyr_1.8.6          grid_4.0.2          promises_1.1.1
[61] forcats_0.5.0       crayon_1.3.4        lattice_0.20-41
[64] haven_2.3.1         splines_4.0.2       hms_0.5.3
[67] pillar_1.4.6        boot_1.3-25         reshape2_1.4.4
[70] codetools_0.2-16    glue_1.4.1          evaluate_0.14
[73] latticeExtra_0.6-29 data.table_1.13.0   png_0.1-7
[76] vctrs_0.3.2         nloptr_1.2.2.2      httpuv_1.5.4
[79] foreach_1.5.1       cellranger_1.1.0    gtable_0.3.0
[82] purrr_0.3.4         tidyr_1.1.1         openxlsx_4.2.3
[85] xfun_0.16           mime_0.9            xtable_1.8-4
[88] broom_0.7.0         coda_0.19-4         later_1.1.0.1
[91] viridisLite_0.4.0   survival_3.1-12     tibble_3.0.3
[94] iterators_1.0.13    cluster_2.1.0       statmod_1.4.35
[97] ellipsis_0.3.1
